| Model | HT120K3-M1 |
| Max. Lifting Moment | 4000 KG |

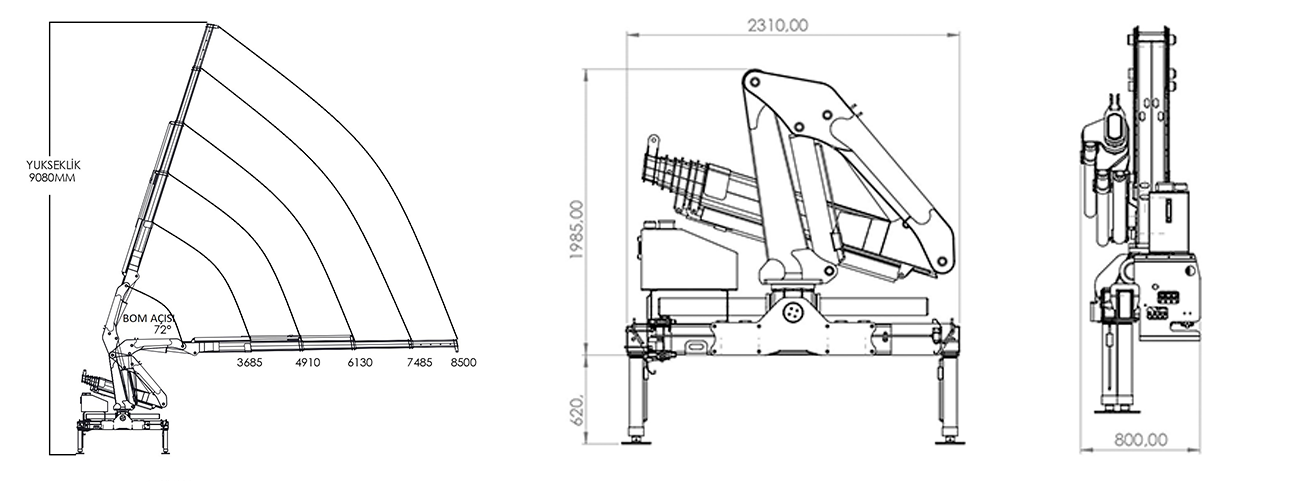

| Max. Lifting Capacity | 6000KG / 2M – 4000KG / 3M – 3000KG / 4M – 2400KG / 5M – 2000KG / 6M – 1400KG / 8.5M |
| Max. Lifting Height | 8.5 M |
| Boom Section | 4 |
| Rotation Angle | 350° |
| Rated Working Pressure | 280 BAR |
| Oil Tank Capacity | 100L |
| Oil Flow | 60L |
| Outrigger Spread (Front – Rear) | ÖN: 1200MM AÇILIŞ / DIŞTAN DIŞ 4700MM |
| Outrigger Type | HİDROLİK |
| Crane Weight | 2000 KG |
| Installation Space | ARAÇ ŞASE ÜSTÜ |
| Swing Type | GRAMIER |
| Options | UZAKTAN KUMANDA ORANSAL VALF BİRLEŞİK EM SİSTEMİ ATAŞMAN HORTUM HATTI SONSUZ DÖNGÜ |
